Cementing & Fracturing Equipment
Acid Pump Truck
The acidizing spread on this truck is built around a centrifugal charge pump that moves 1000 m3/h at 45 m of head, controlled either at the panel or from a 30 m wired remote.
Product list
Oilfield equipment for drilling, workover and well service.
Explore 58 equipment models across drilling rigs, workover rigs, cementing and fracturing equipment, well service units, transport systems and supporting oilfield machinery.
58Equipment models
9Equipment lines
TechnicalSpecifications and applications
Cementing & Fracturing Equipment
Double Pump Cementing Truck
This truck carries two triplex plunger pumps - 3ZB-265 or 3ZB-300 units - on a Beiben ND2254F50J 6x6 chassis, each rated to put 70 MPa and a combined 100 m3/h into the casing string.
Cementing & Fracturing Equipment

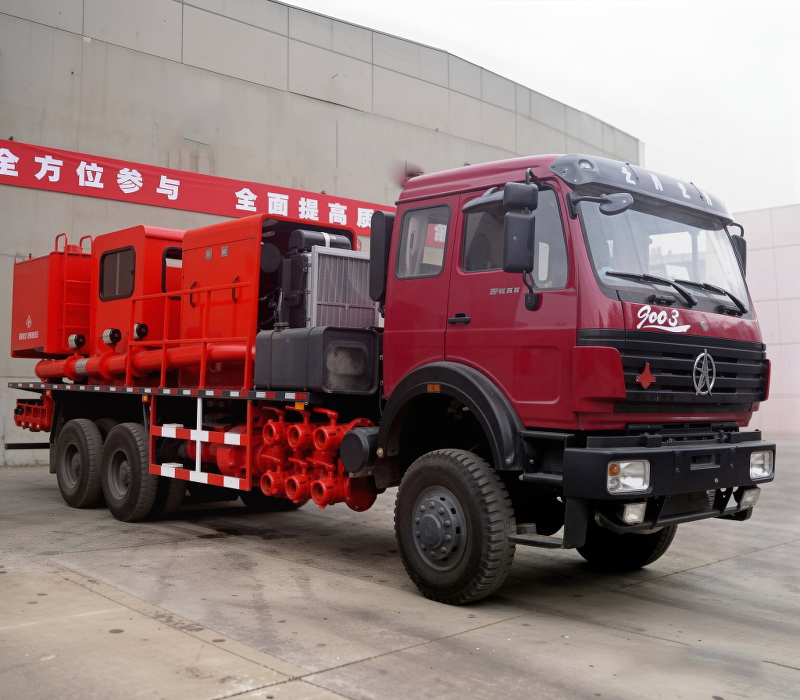

Fluid Supply Truck
The support role on a cementing or fracturing spread is filled by this truck's centrifugal pump - 750 m3/h at 45 m of head - feeding clean water or fracturing fluid to where the active equipment is working.
Cementing & Fracturing Equipment

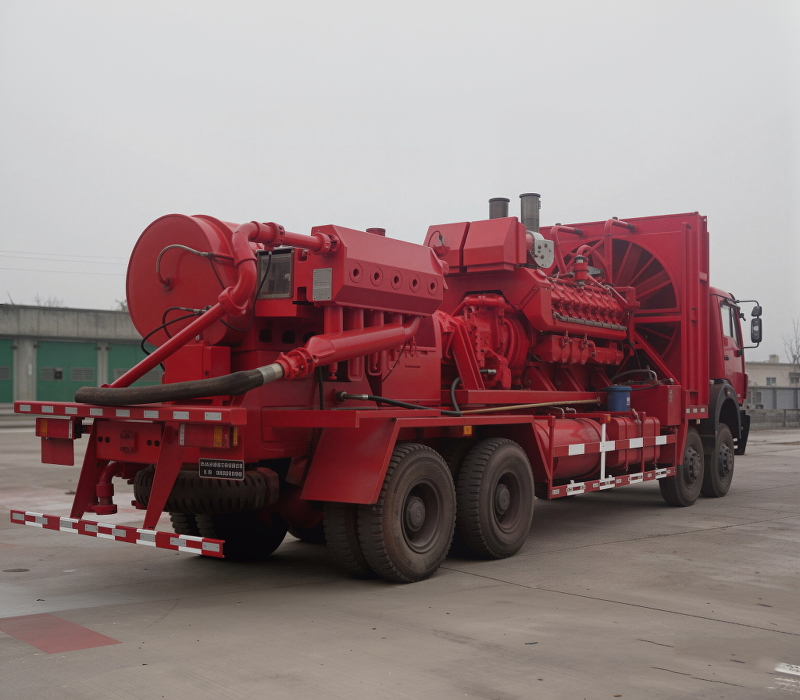

Fracturing Pump Truck
A fracturing truck earns its place on location by two numbers: 105MPa maximum pressure and 2719 L/min maximum displacement.
Cementing & Fracturing Equipment

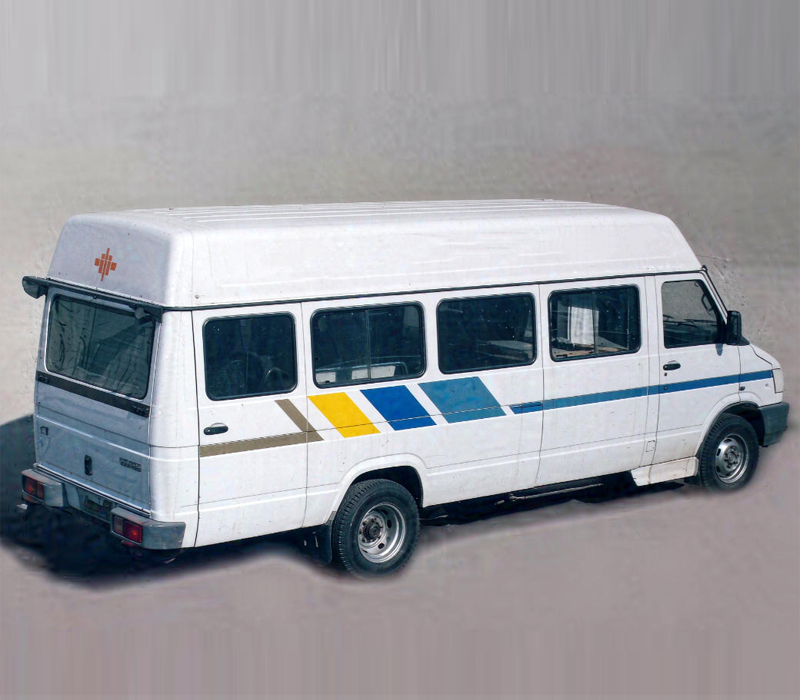

Instrument Vehicle
This is the control cabin of a cementing or fracturing spread, not a pump: a Siemens PLC center console with analog input-output modules sits inside a 4x2 or 4x4 chassis, networked through a looped-plus-star control architecture and backed by 8-12 Motorola radios over a 50 m working radius.
Cementing & Fracturing Equipment

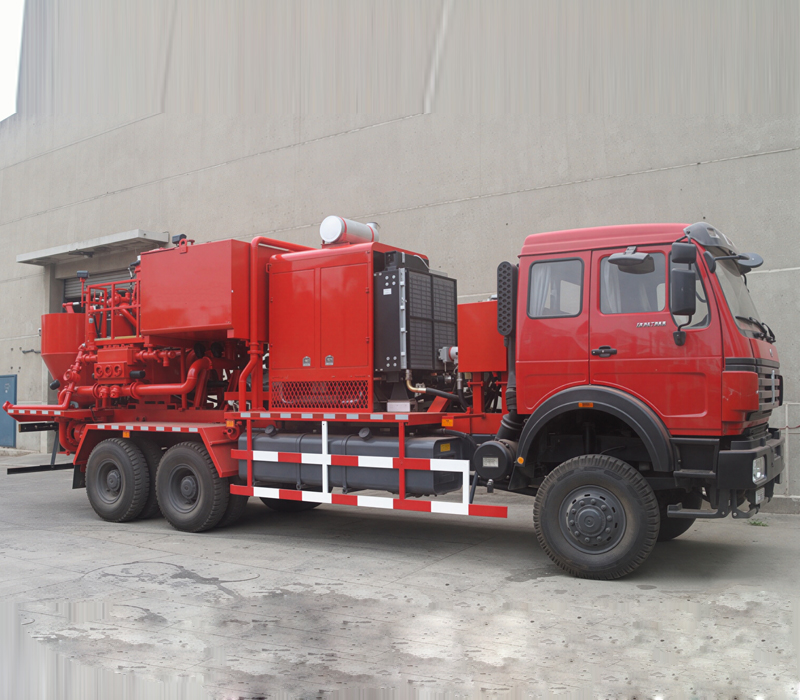

Single Pump Cementing Truck
One 3ZB-265 or 3ZB-300 triplex pump, mounted on a Beiben ND2254F50J 6x6 chassis, delivers 70 MPa maximum working pressure and 100 m3/h theoretical displacement for the cementing job that does not need a twin-pump spread.
Cementing & Fracturing Equipment
Skid mounted Cementing Unit
Installed on a fixed skid rather than a truck, this unit pushes 70 MPa and 84.6 m3/h through a triplex plunger pump rated at 300 kW input power, pumping water, slurry and other well-service fluid for a station that stays in one place.
Cementing & Fracturing Equipment
Truck mounted Cementing Equipment
The truck-mounted cementing range is specified by two pressure classes and two drive options.
Drilling Rigs
1000HP Skid Mounted Rig (ZJ40D)
The ZJ40D is the 4000m-class workhorse of the skid range, rated 2500–4000m on 114mm drill pipe (2000–3200m on 127mm pipe) with a 2250kN maximum hook load reeved 5×6 over φ32mm line.
Drilling Rigs

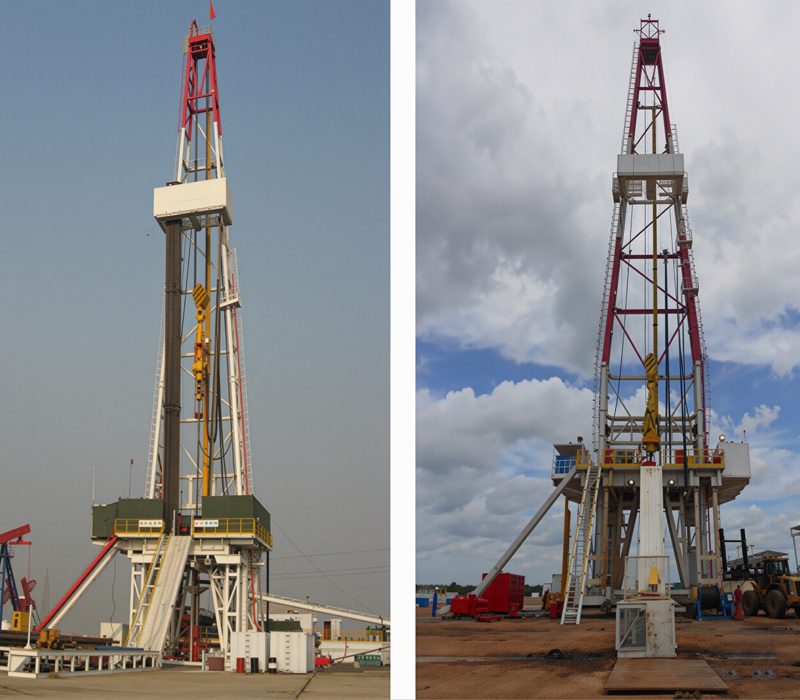

1500HP Skid Mounted Rig (ZJ50D)
The ZJ50D takes the skid line into the 5000m class, rated 3500–5000m on 114mm pipe (2800–4500m on 127mm) with a 3150kN maximum hook load.
Drilling Rigs

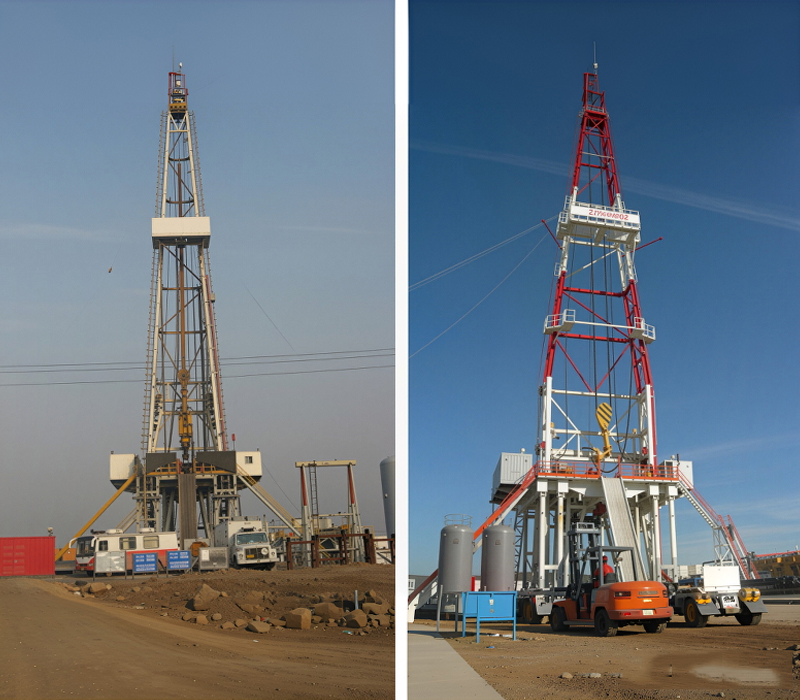

2000HP Skid Mounted Rig (ZJ70DB)
The ZJ70DB is the standard ultra-deep rig of the skid line, rated 4500–7000m on 114mm pipe (4000–6000m on 127mm) with a 4500kN maximum hook load on a 6×7 string reeved with φ38mm line.
Drilling Rigs

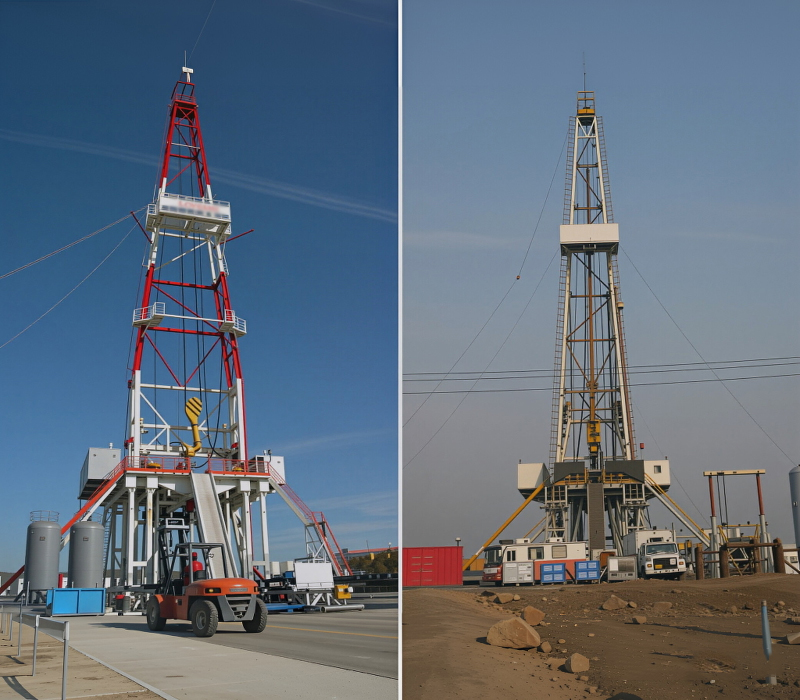

2500HP Skid Mounted Rig (ZJ80)
The ZJ80 is a fixed-station rig sized by its depth envelope: 6000–9000m nominal drilling with 114mm drill pipe, or 5000–8000m with 127mm pipe, on a 6750kN hook rating strung 7×8 with Φ42mm drill line under a 48m K-type mast.
Drilling Rigs
3000m Mobile Rig
The 3000m Mobile Rig is the lightest fast-mover in the drilling fleet, rated for 3000m on 4 1/2” drill pipe with an 1800kN maximum hook load.
Drilling Rigs

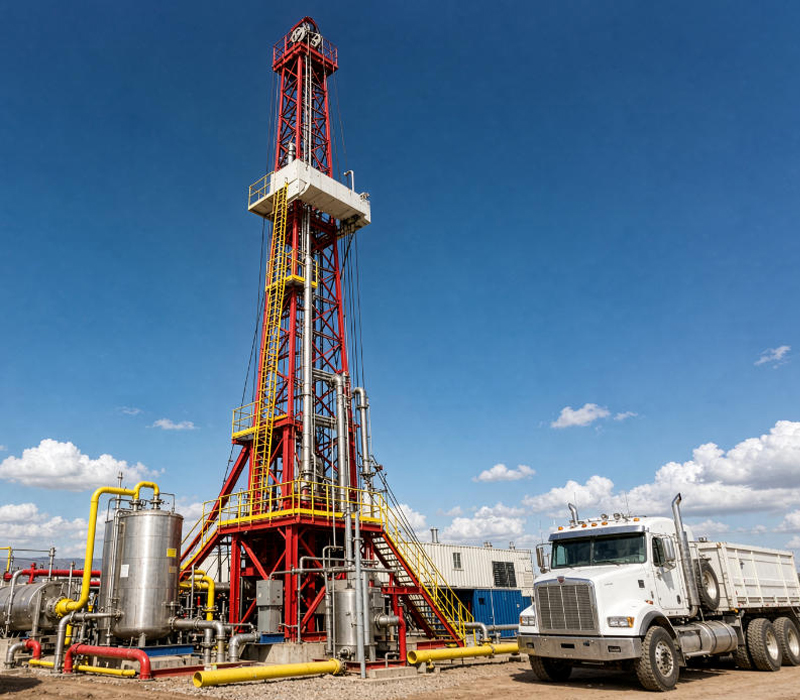

4000m Mobile Rig
The 4000m Mobile Rig (ZJ5550TZJ225) is the deeper fast-mover of the fleet, rated for 4000m on 4 1/2” drill pipe with a 2250kN maximum hook load.
Drilling Rigs

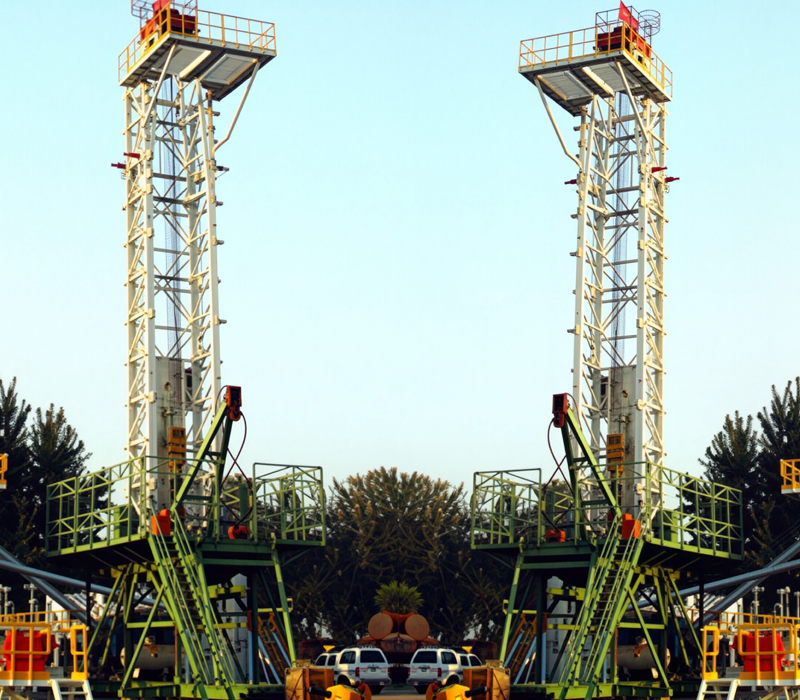

750HP Skid Mounted Rig (XJ750 ZJ30)
The XJ750/ZJ30 is the smallest fixed-station rig in the skid line, sized around a 1700kN hook on a 5×6 string reeved with φ29mm line, rated for 1600–3000m of hole on 114mm drill pipe.
Drilling Rigs

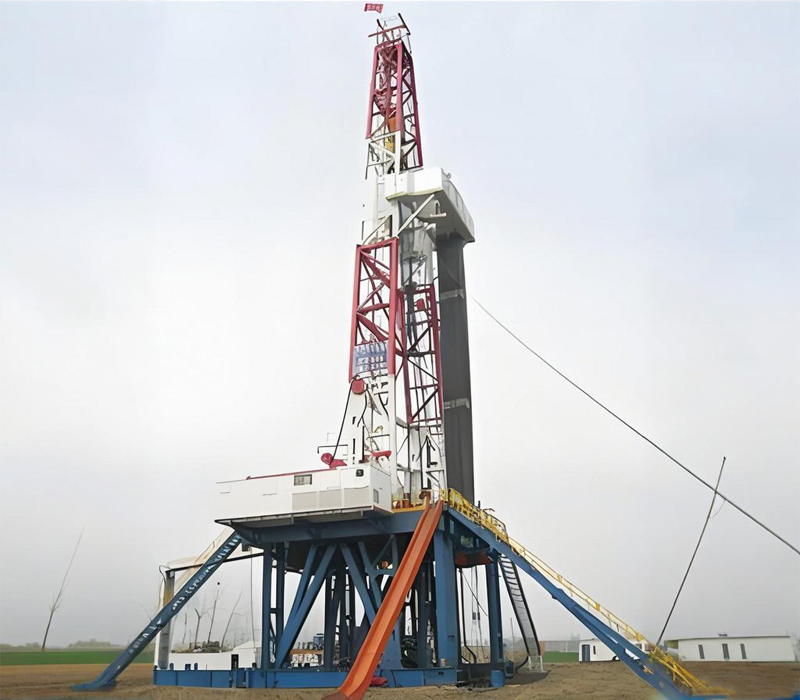

ZJ70 4500D Rig
The ZJ70-4500D is a DC-electric drilling rig built for the 7000m class, rated 4500–7000m on 114mm pipe (4000–6000m on 127mm) around a 4500kN hook on a 6×7 string reeved with φ38mm line.
Drilling Rigs

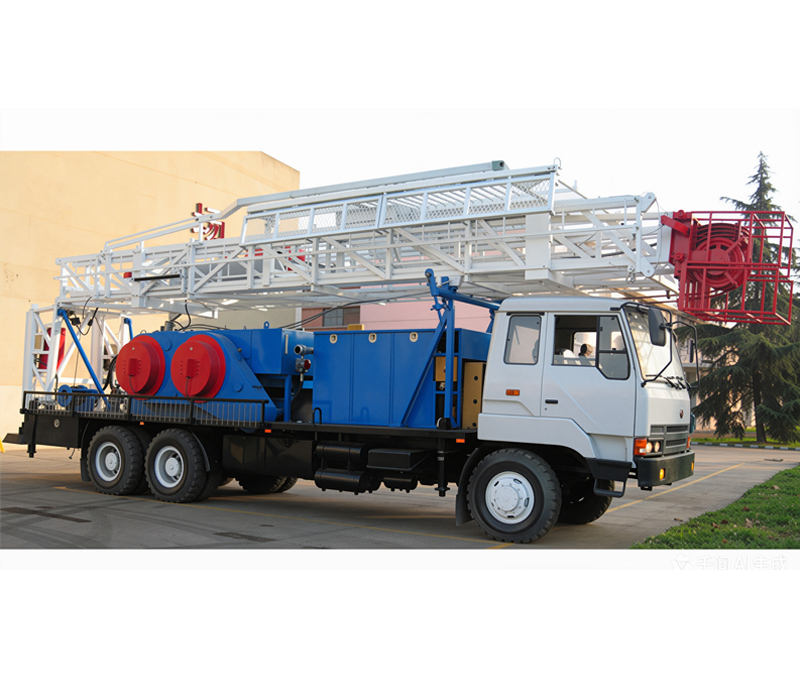

250HP Truck Mounted Rigs
Workover to 3200 m on 2 7/8-inch upset tubing is this rig's job: a 400 kN nominal hook load that peaks at 675 kN, run through six lines of 22 mm wire under a mast that stands 21 m or 23.5 m.
Drilling Rigs

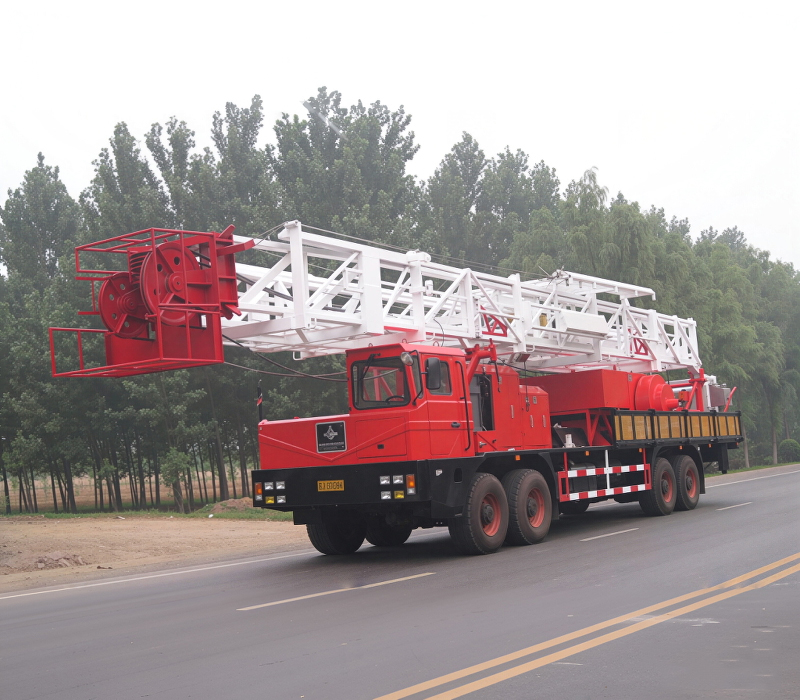

350HP Truck Mounted Rigs
Badged ZYT5502TZJ, this rig is defined by a 1125 kN maximum load on a 4x5 traveling system, eight lines of 26 mm (1-inch) wire pulled to a 210 kN fast-line pull, under a 32 m clearance mast.
Drilling Rigs

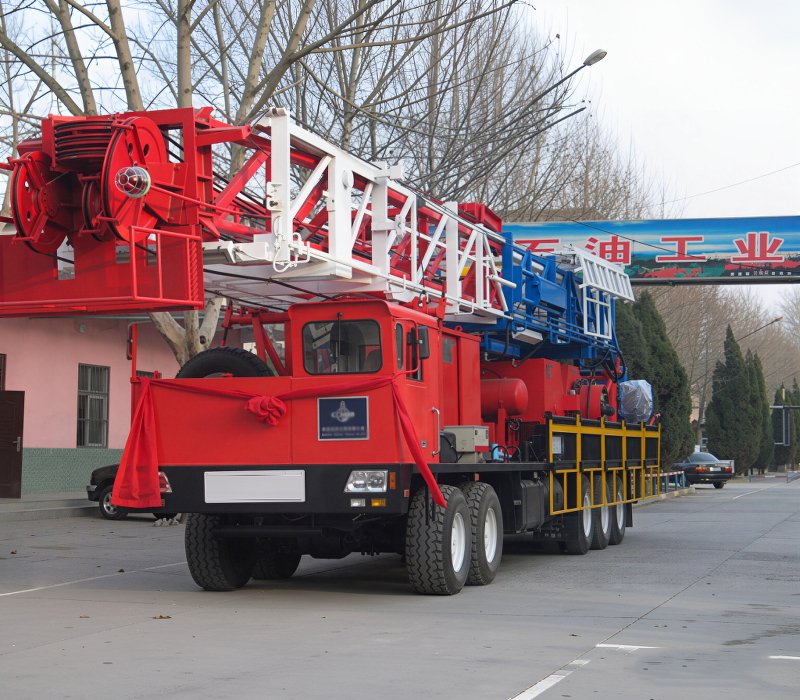

450HP Truck Mounted Rigs
At 5500 m of workover with 73 mm tubing, and 4500 m when drilling with 73 mm drill pipe, the XJ450 sits where shallow service rigs run out of reach and the deep fleet starts.
Drilling Rigs

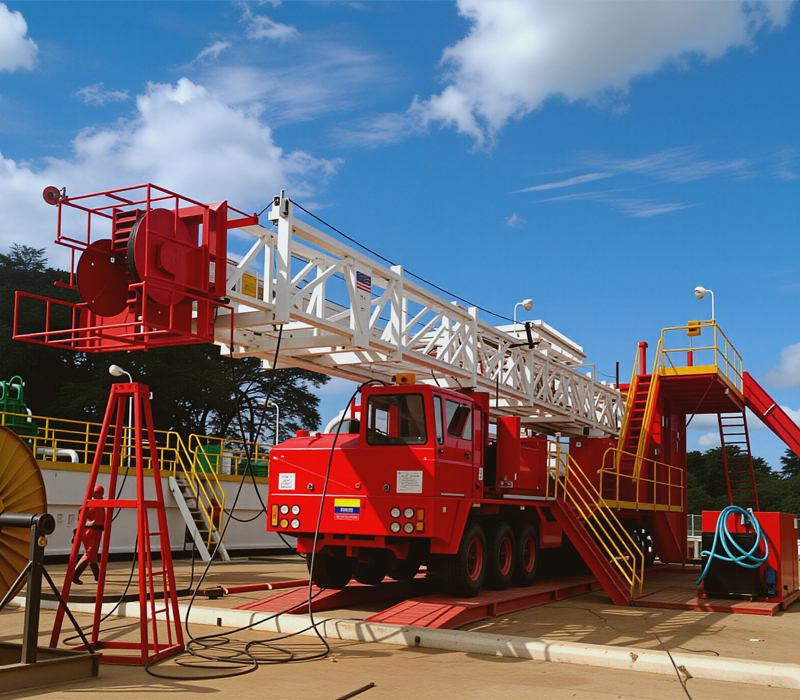

550HP Truck Mounted Rigs
Built for wells the shallow and mid rigs cannot reach, this 550 hp unit carries its rated 550 hp power pack on a multi-axle heavy off-road carrier and is rated for typical workover to 5800 m and service to 7000 m.
Drilling Rigs

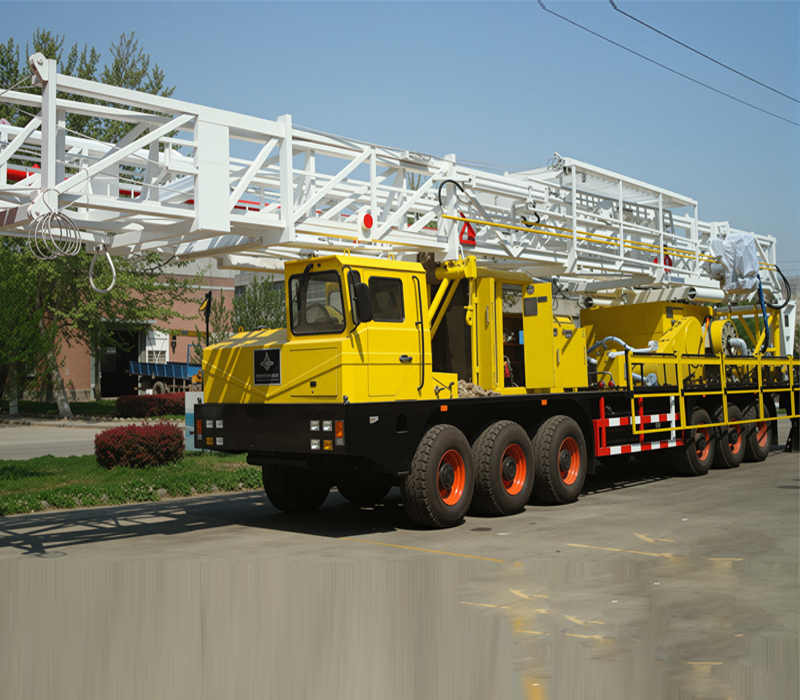

650HP Truck Mounted Rigs
Rated to 1470 kN maximum hook load, the 650 hp truck rig is the machine a service fleet steps up to when 1125 kN-class units start giving away margin on heavy overhaul.
Drilling Rigs

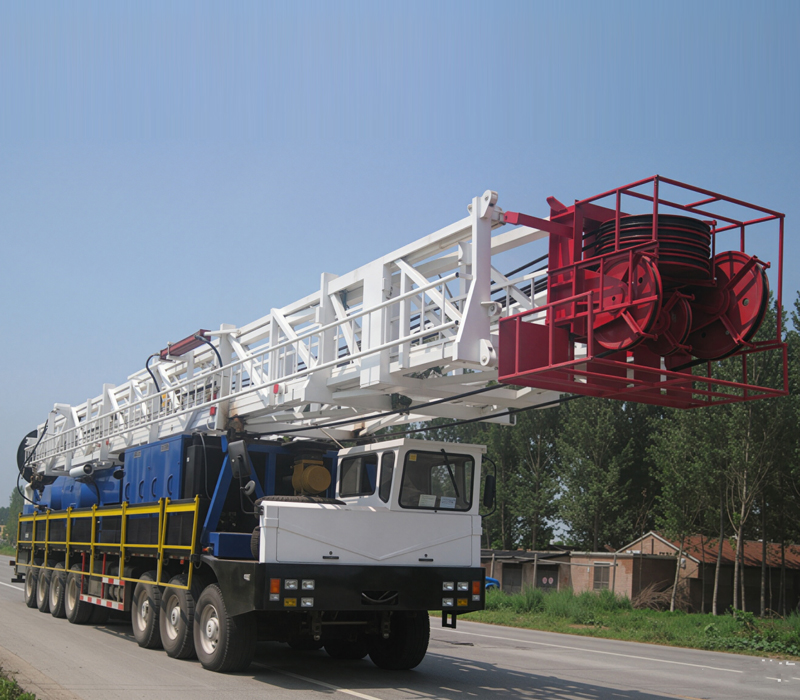

750HP Truck Mounted Rigs
The XJ750 is where the truck-mounted line goes to dual power: two CAT C15 engines, each rated 540 bhp, paired with two Allison M5620AR transmissions to supply the hoisting work behind an 1800 kN maximum load.
Drilling Rigs
850HP Truck Mounted Rigs (XJ850 ZJ40)
The XJ850/ZJ40 is the top of the truck-mounted range, sized to a 2250 kN maximum hook load on two CAT C18 engines rated 630 bhp apiece.
Inspection & Testing Equipment

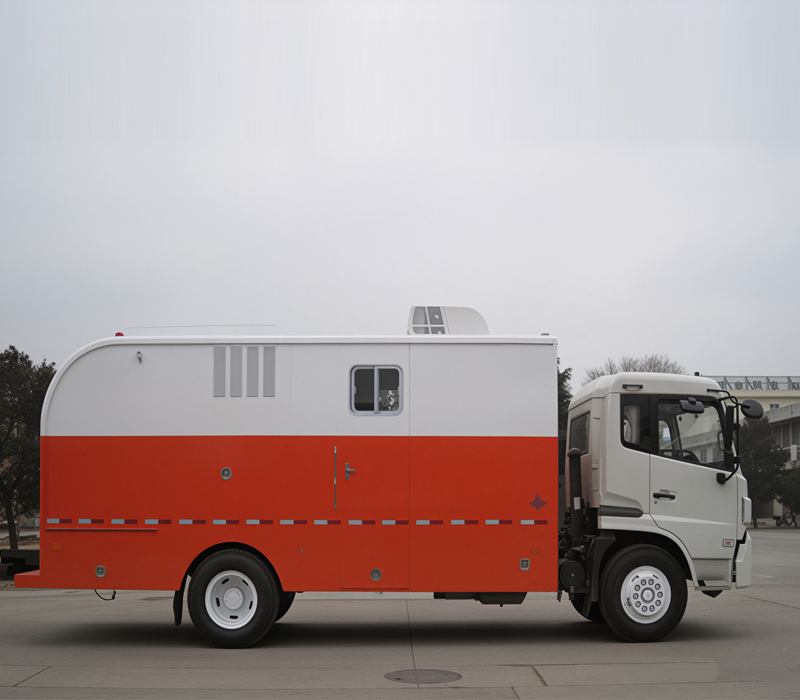

Logging Truck
The logging truck is a measurement platform first: model ZYT5142TCJ on a DFL1160BX5 chassis, rated to log to 5000 m on phi5.6 or phi8 mm armored cable, with a winch pull of 30 or 50 kN for the two cable sizes and a hoisting window from 130 to 8000 m/h.
Inspection & Testing Equipment

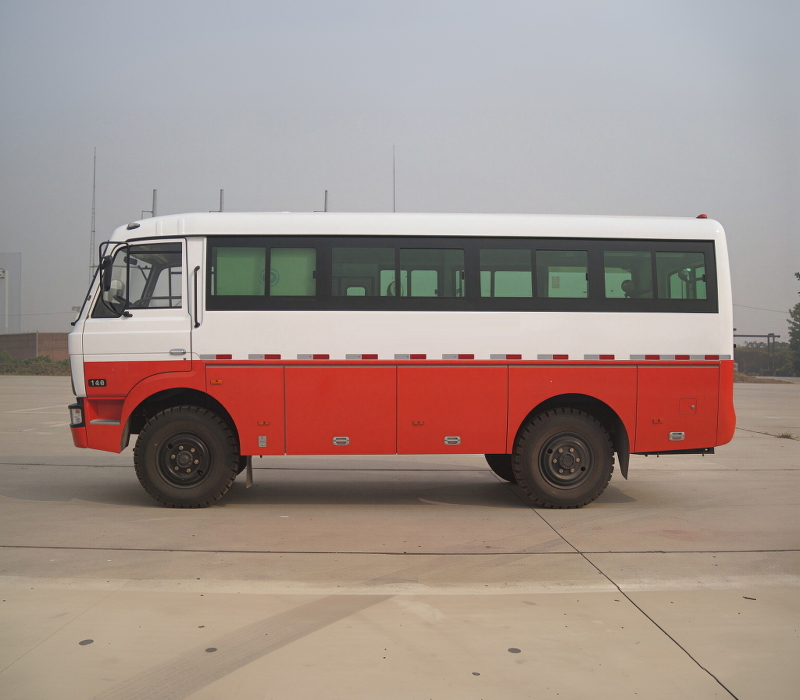

Wireline Unit
The wireline unit is the mechanical counterpart to the logging truck: on an EQ6672CT 4x4 chassis it runs solid wireline to at least 6000 m on phi2.4 mm line (drum 6500 m or more) or electric cable to at least 4500 m on phi3.5 mm (drum 5000 m or more), with a modest 10 kN maximum pull at up to 6 m/s and a drum speed of 0 to 350 r/min.
Oil Production Equipment

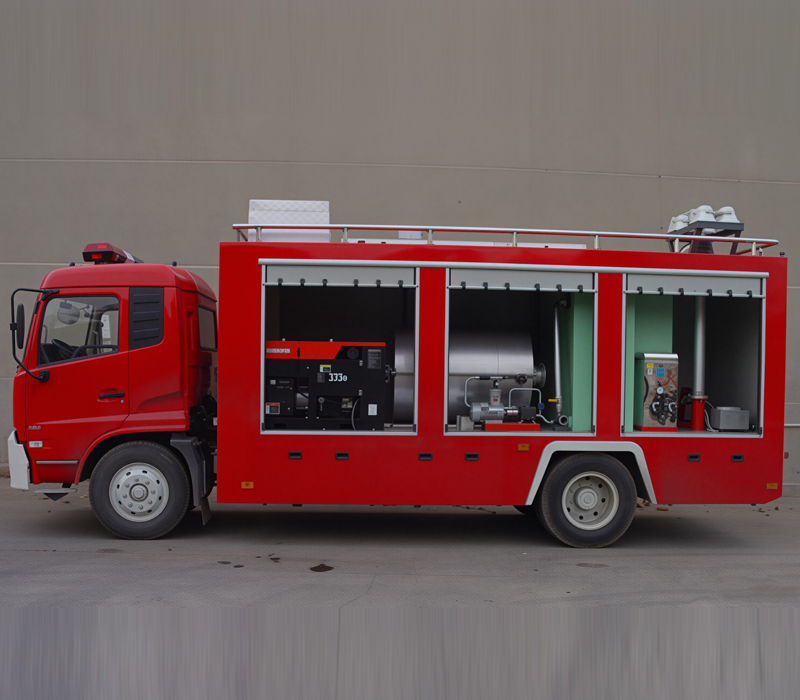

Boiler Truck
A boiler truck earns its keep by heat, not by pressure: this unit delivers working water at up to 280 through a fired tube package rated at 6 or 9.8 MPa, at a hot-water or steam output of 1.26, 1.8 or 3.0 t/h.
Oil Production Equipment

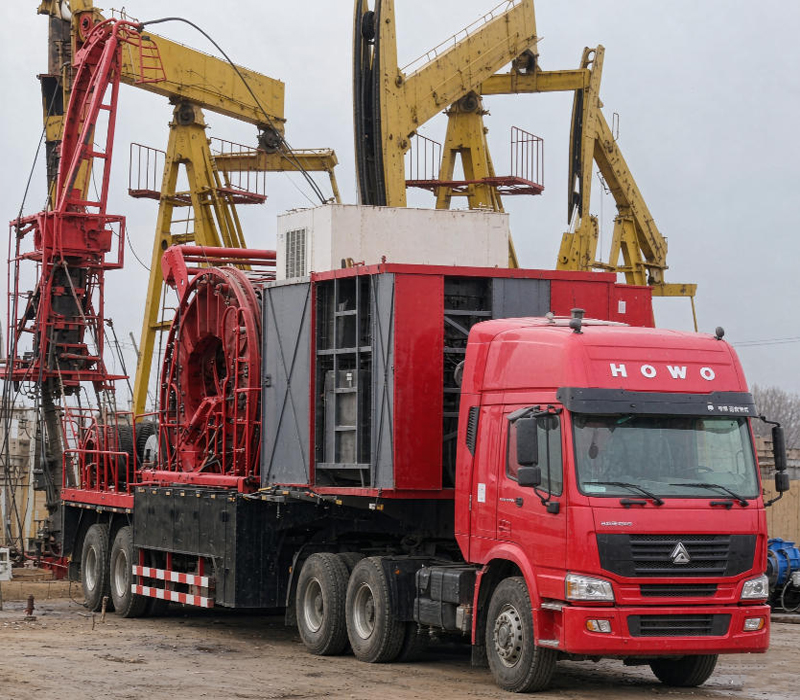

Coiled Tubing Truck
Three pulling ratings define this coiled tubing line: ZLG155/38 holds 155 kN continuous tension, ZLG225/45 holds 225 kN and ZLG290/50 holds 290 kN, with laying depths of 3600, 4200 and 5900 m on 1.5-inch tubing.
Oil Production Equipment

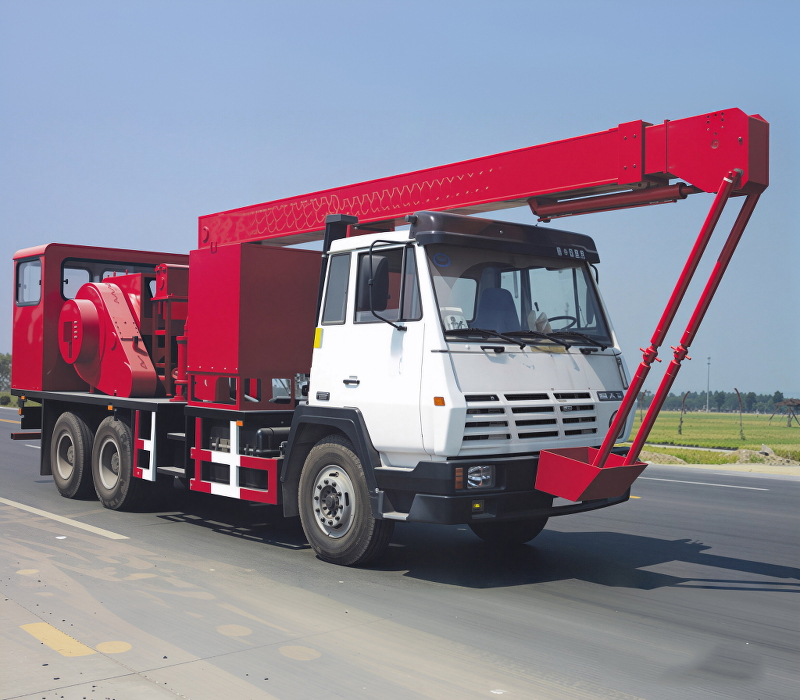

Swabbing Unit
The swabbing unit is rated by a drum-dependent lifting envelope: up to 120 kN at minimum drum diameter, down to 80 kN as the drum fills, with a maximum working depth of 3350 m.
Oil Production Equipment
Well Flushing and Paraffin Removal Truck
This unit combines two duties in one truck: a triplex plunger pump rated up to 35, 40 or 70 MPa at 50, 60, 80 or 100 m3/h for cold high-pressure flushing, and a fired heater that delivers hot wash at 20 MPa and 160, at no less than 22.5 m3/h and still 4.9 m3/h at peak temperature.
Oil Production Equipment

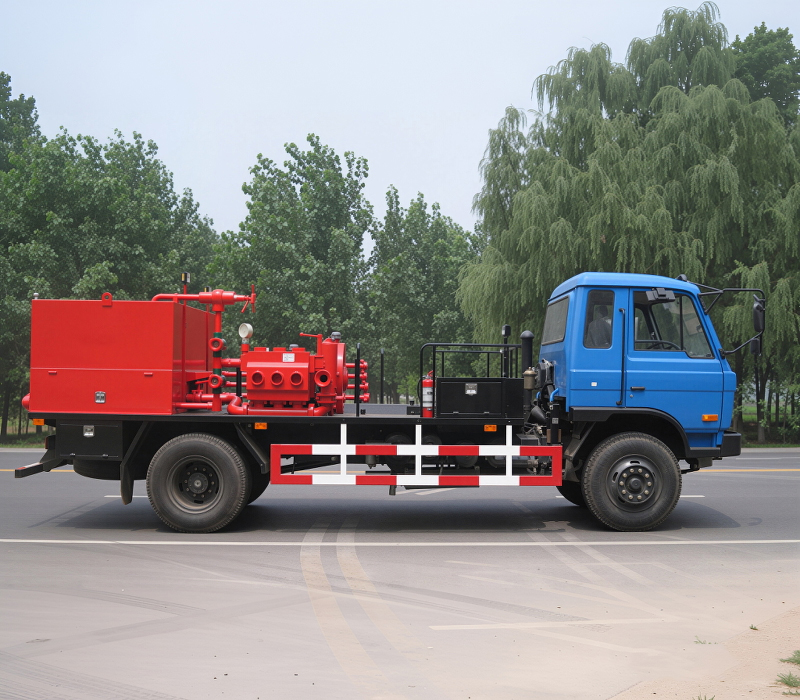

Well Flushing Truck
This is the single-purpose water flushing truck, sized at 40 MPa maximum pressure and 30 m3/h maximum displacement, with a booster pump fed at 12 to 16 MPa inlet pressure.
Oilfield Power Equipment

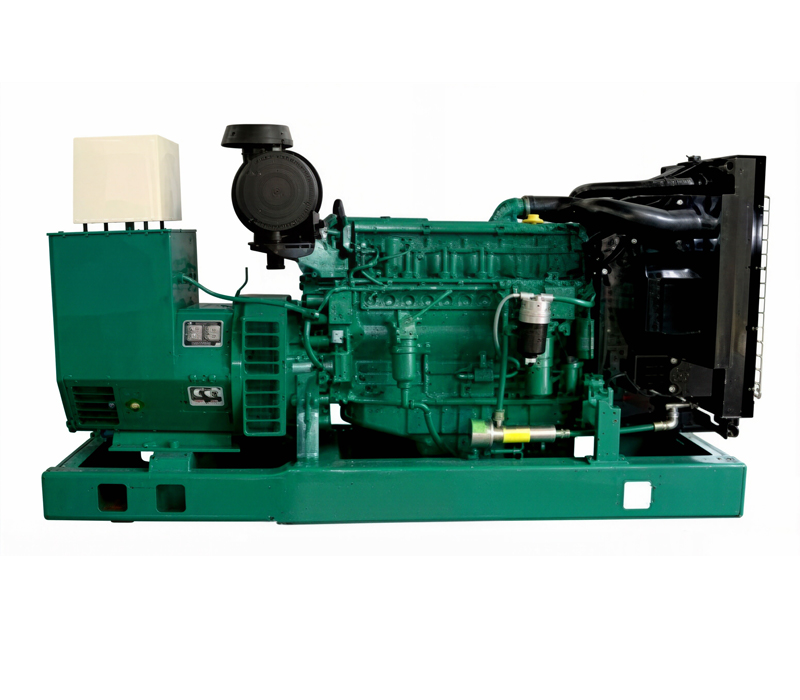

Generator Set Equipment
Volvo diesel engines matched to Stamford alternators span this line from the SVL70 at 56 kWe prime to the SVL625 at 500 kWe prime, all at 50 Hz, with brake-specific fuel consumption held around 198 to 208 g/kWh across the range.
Oilfield Transport Equipment

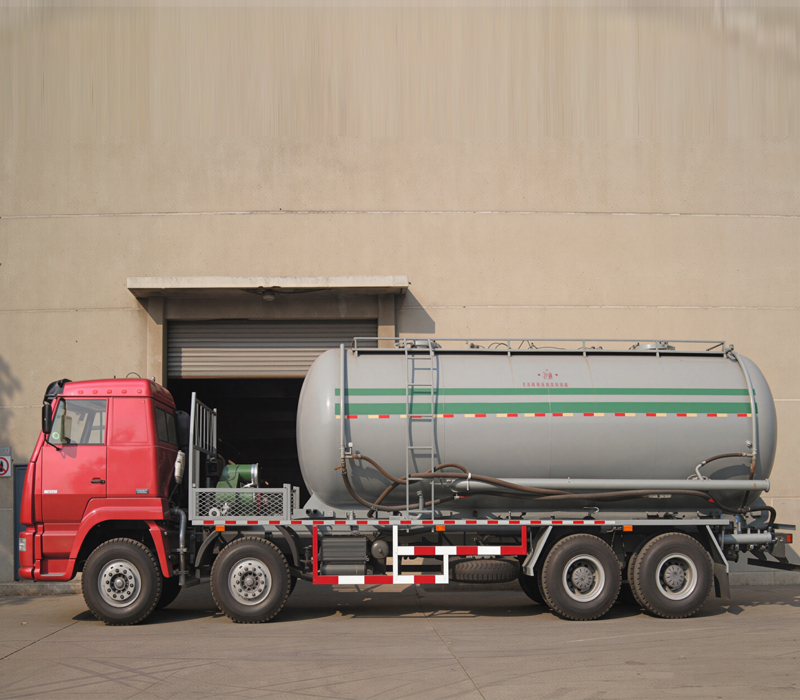

Bulk Cement Truck
A sealed 14.1 to 20 cubic metre powder tank on a heavy off-road chassis is the working heart of this unit, with a 7.5 to 10 cubic metre per minute compressor holding the chamber at a 0.2 MPa working pressure throughout discharge.
Oilfield Transport Equipment

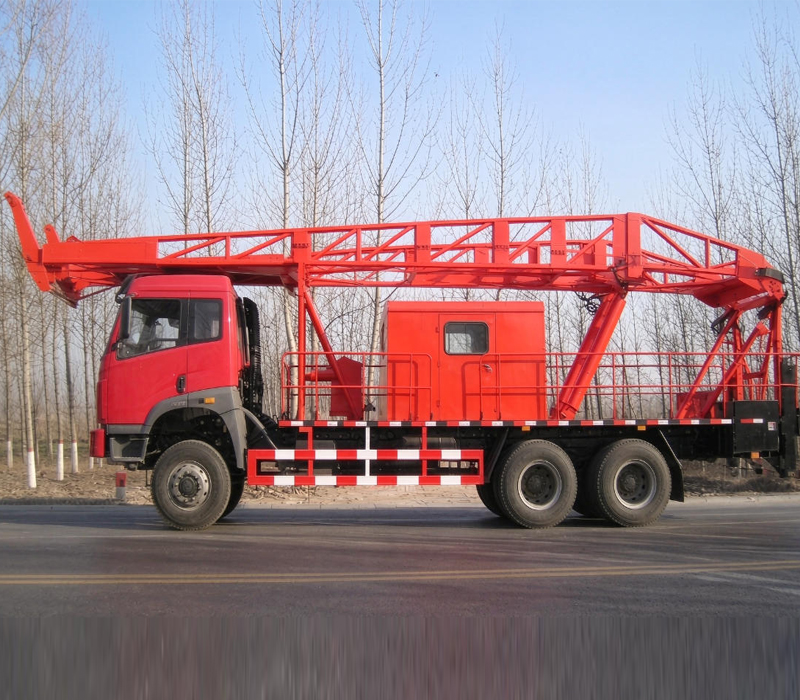

Derrick carrying Truck
This carrier is built around a 13 MPa lifting-and-landing hydraulic loop, backed by a 6 MPa fine-adjustment circuit and a 0.8 MPa air system, so a folded drilling derrick can be lifted off, set down and aligned without a separate crane.
Oilfield Transport Equipment

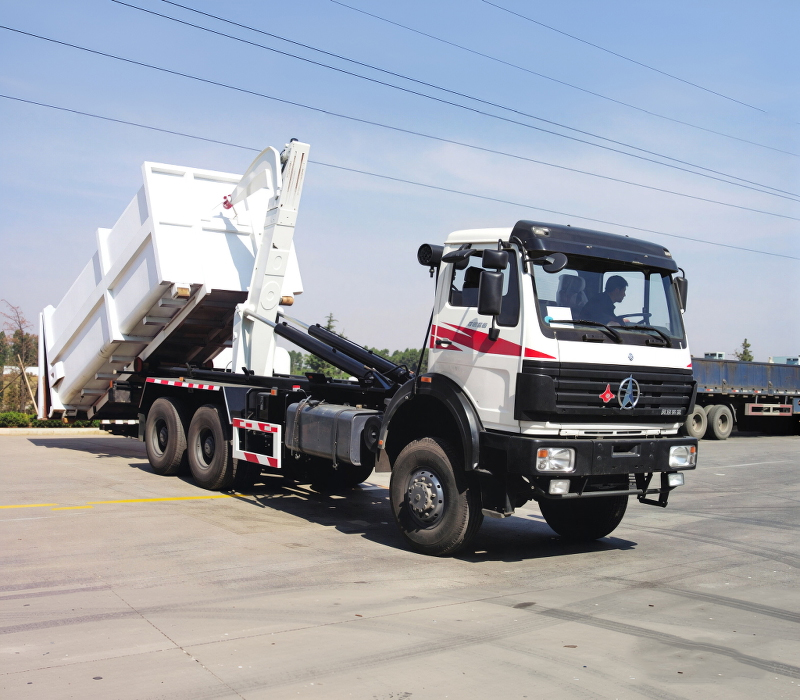

Dump Truck with Hydraulic Arm
A 11,170 kg rated load on a 6 by 6 off-road chassis defines this unit, with a 27 MPa and 40 L per minute hydraulic circuit, fed by an imported Italian axial plunger pump, driving both the articulated loading arm and the tipping box.
Oilfield Transport Equipment

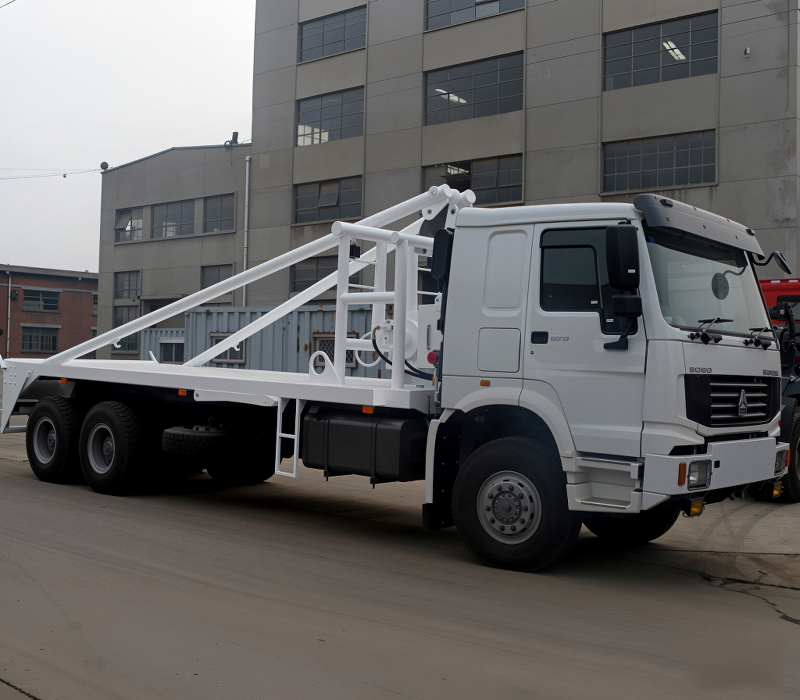

Gin Pole Truck
A 25 tonne winch line pull at the bottom layer, on 1-1/8 inch (28 mm) wire, is what this gin-pole truck hoists with, while the folding mast frame is rated to lift 15 tonnes and the flat deck carries a 20 tonne load.
Oilfield Transport Equipment

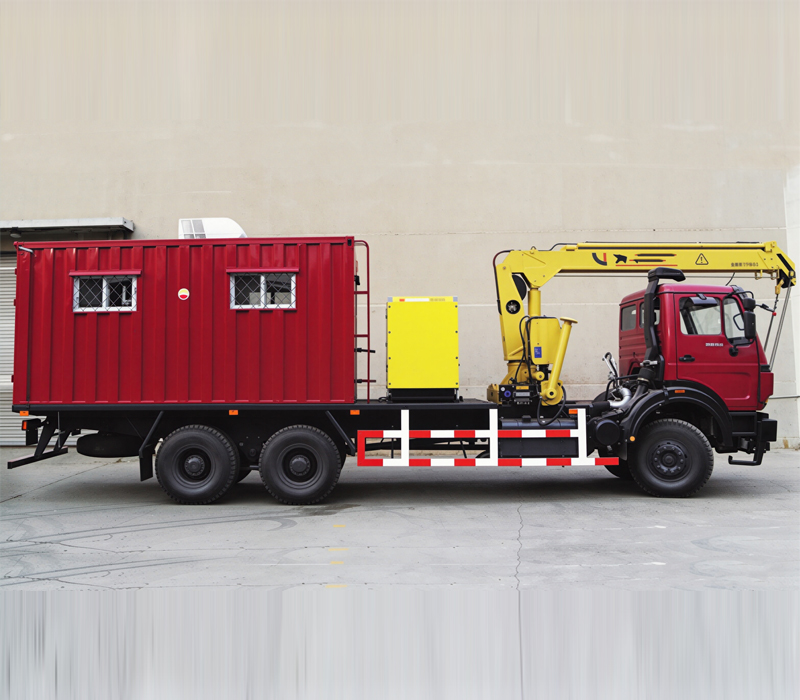

Mobile Workshop
A 20 kW onboard diesel generator, with a 5.5 kW industrial air compressor behind it, makes this workshop self-sufficient: no shore power, no remote air line.
Oilfield Transport Equipment

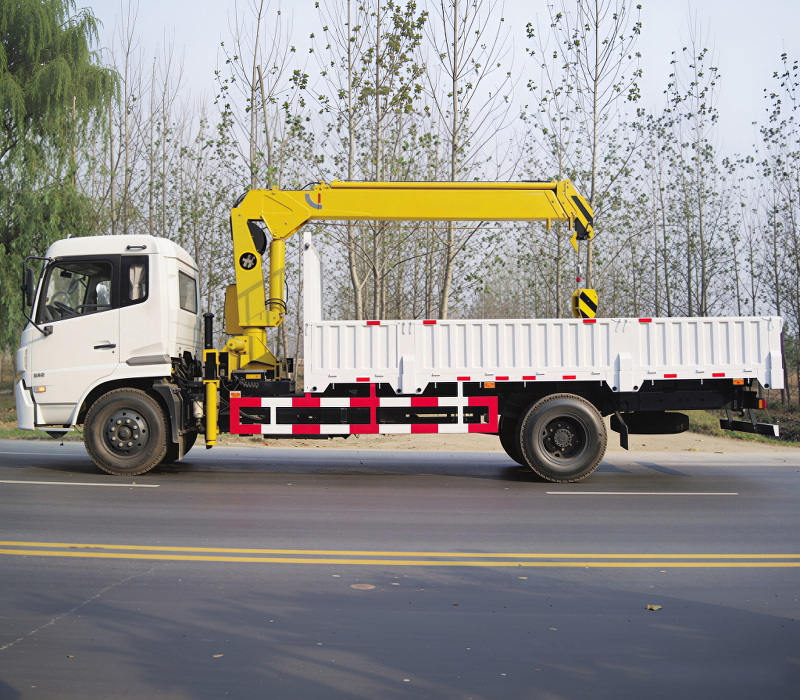

Truck with Crane
This unit lifts 8,000 kg at a 2.0 m radius, or 5,000 kg at 2.25 m, from a multi-section telescopic boom that reaches 15,000 mm fully extended, 10,500 mm on the shorter configuration, and then hauls a 9,140 kg payload on the flat carriage.
Rig Moving Systems

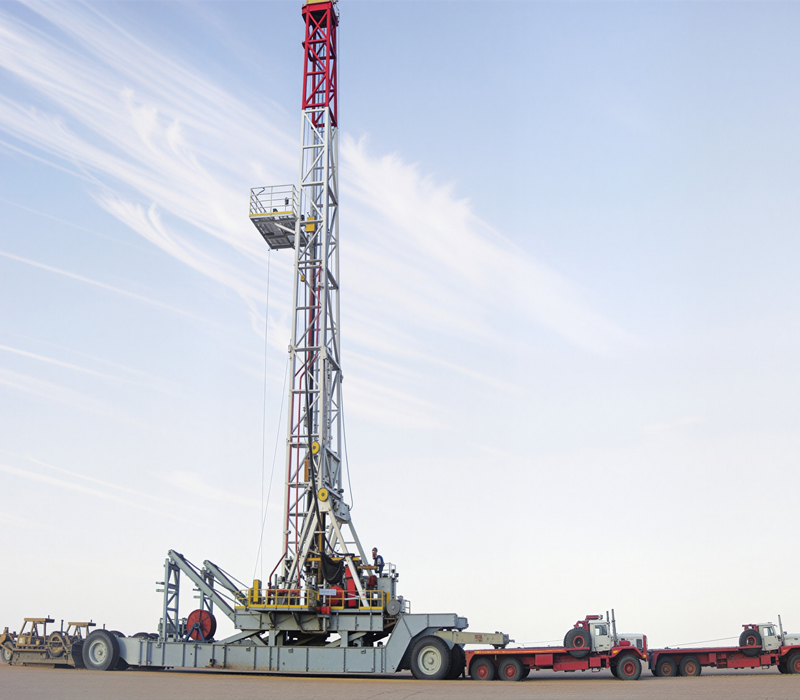

Land Rig Moving System
Designed to carry a whole 300 to 480 tonne land rig without splitting it, this self-propelled moving system is rated to shift up to 400 to 540 tonnes in solid-moving configuration, with mast, drawworks, power pack and floor riding as one load.
Rig Moving Systems

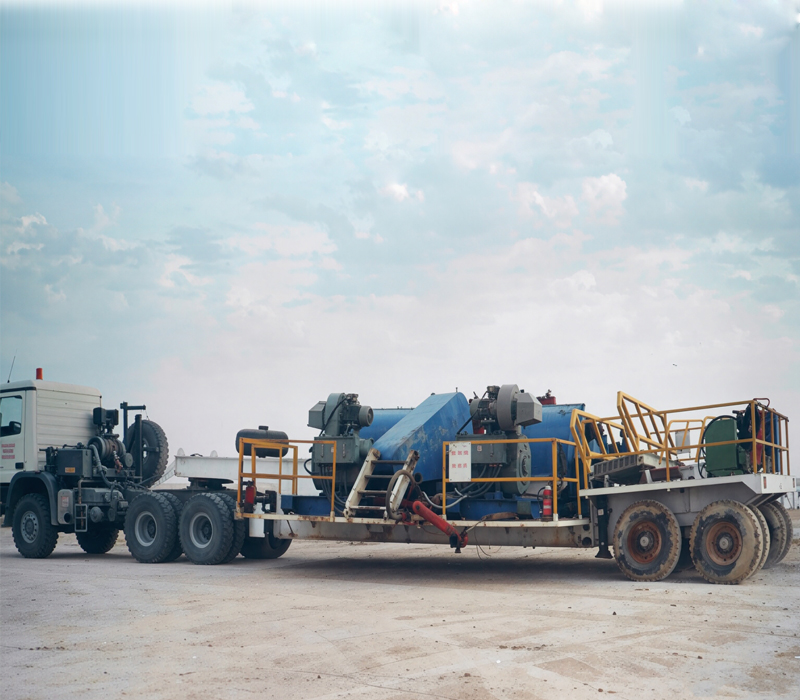

Moving System for Drilling Rig Matched Equipment
Where the main rig carrier moves 300 to 480 tonnes, this system moves the support side: generator-room and auxiliary skid sets of 80 to 160 tonnes, with a moving capacity of 100 to 200 tonnes on a 3-1/2 inch traction pin.
Rig Moving Systems

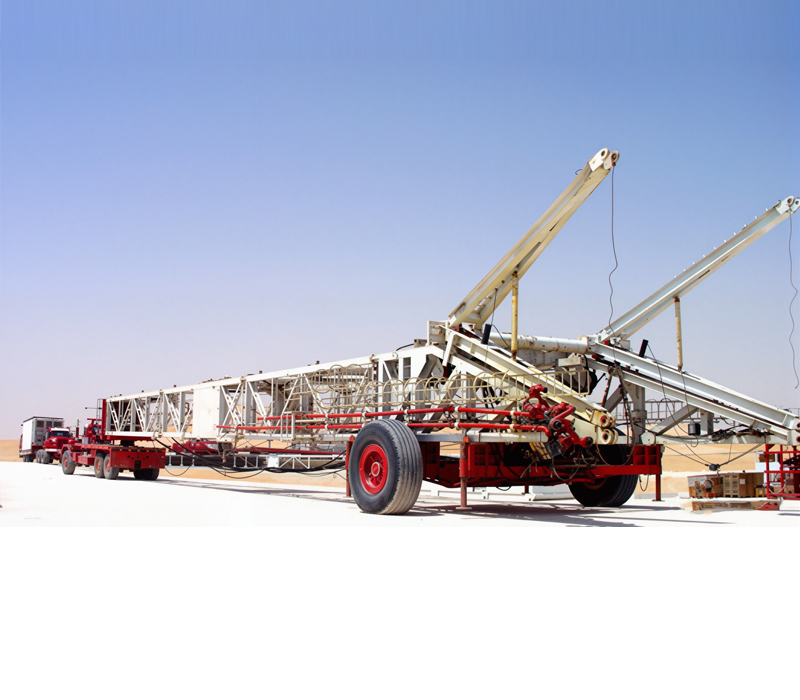

Rig Mast Moving Equipment
This carrier is purpose-built for the folded telescopic mast: 80 to 150 tonne rig masts move on a 100 to 180 tonne rated frame, at 10 km per hour, with 600 mm clearance and an 11,000 mm road-width allowance.
Rig Moving Systems
Rig Substructure Moving Equipment
The rig substructure is the bottom 180 to 330 tonne block of the rig, and this skid mover is rated to shift it at 220 to 390 tonnes capacity, 10 km per hour, with 600 mm clearance on a 12,000 mm road width.
Workover Rigs

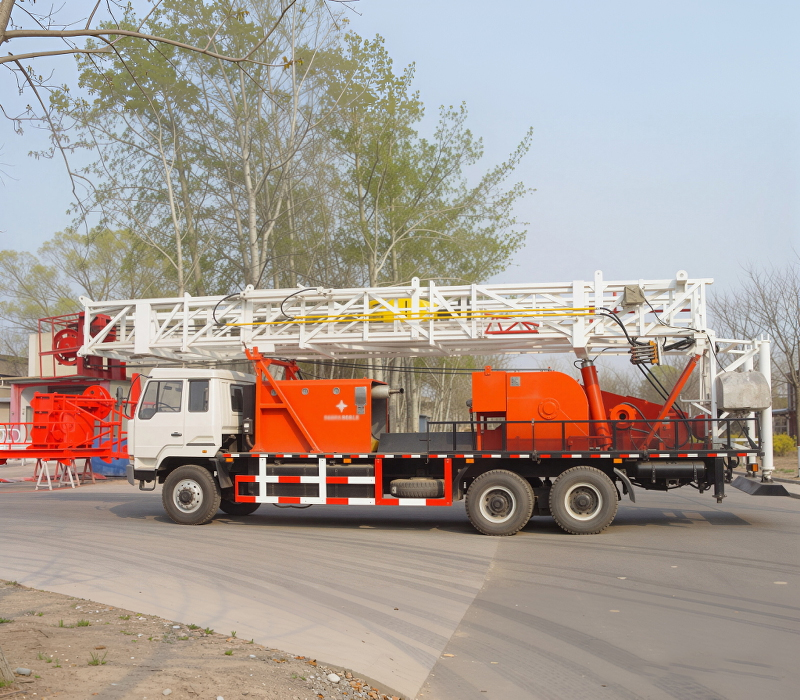

150HP Workover Rig
Rated at a 585kN maximum hook on a φ22mm line strung six lines, the XJ150 is sized for the shallow end of the workover fleet rather than deep-service duty.
Workover Rigs
250HP Workover Rig (XJ250)
The XJ250 is the first truck in the fleet where hoisting speed starts to matter: a 675kN maximum hook on a φ22mm, six-line train runs the hook at up to 1.5 m/s, pulling 3200m of 2 7/8″ upset tubing in less time than a slower light rig.
Workover Rigs

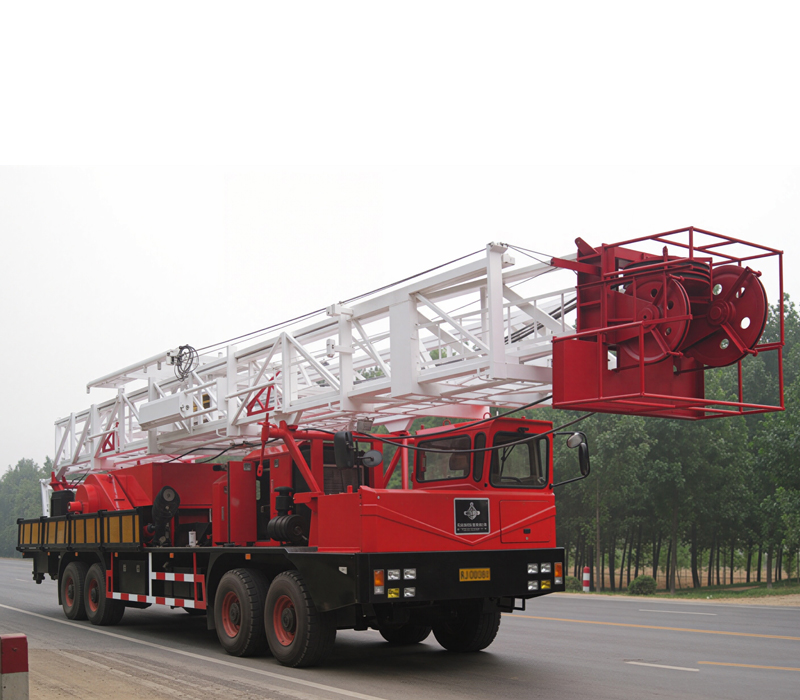

350HP Workover Rig (XJ350)
The XJ350 opens the heavy-duty tier: a 900kN maximum load on a 650kN nominal hook, reeved eight lines over Φ26mm drill line under a 23.5m mast.
Workover Rigs
450HP Workover Rig (XJ450)
The XJ450's place in the lineup is defined by its hoisting train: a 1125kN hook rating on a 4×5 traveling system with Φ26mm drill line, backed by a mast that cleans 32m and holds 1200kN static.
Workover Rigs

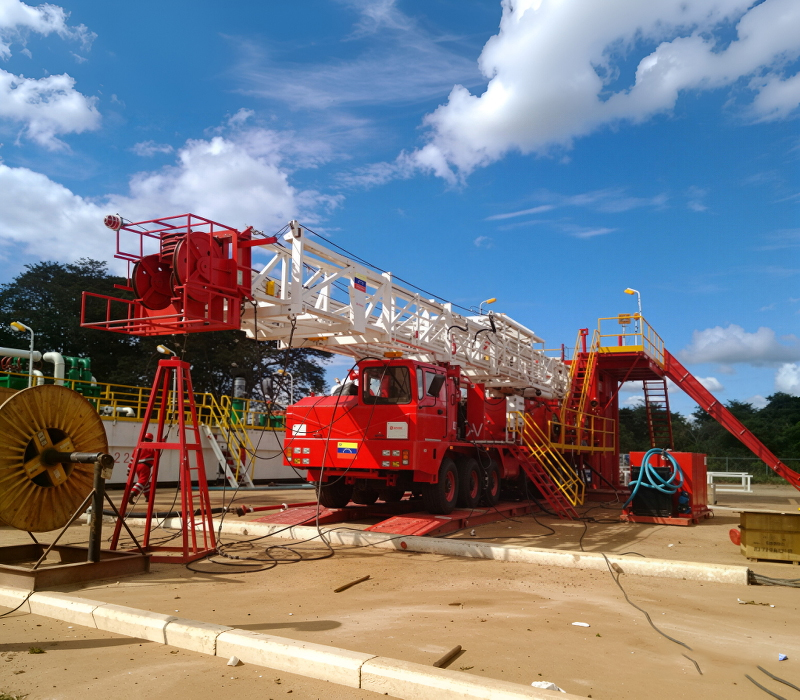

550HP Workover Rig (XJ550)
The XJ550 is rated at a 1350kN hook, the top of the conventional truck-mounted workover range, and it gets there with a Caterpillar C18 at 630 bhp through an Allison M6620AR rather than the C15 pack used one size below.
Workover Rigs

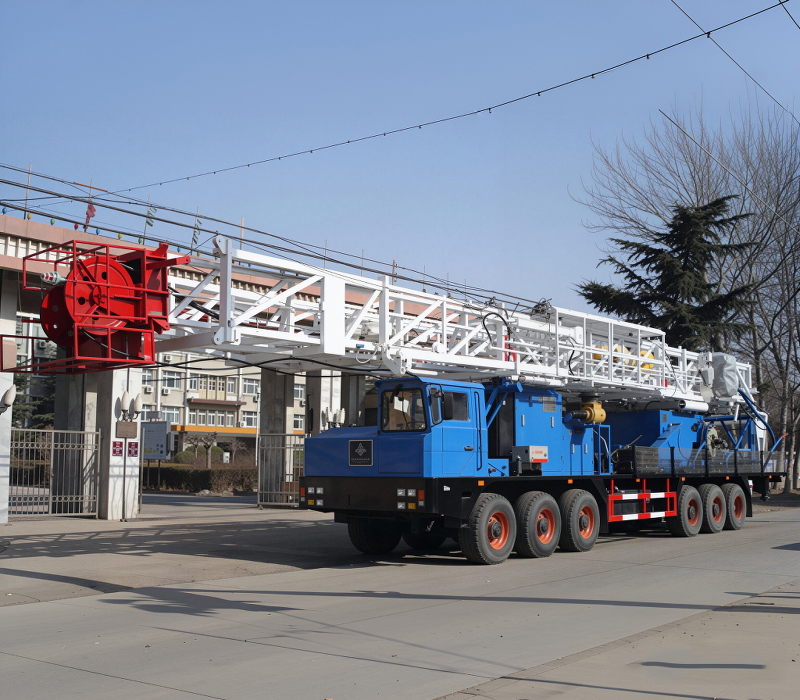

650HP Workover Rig
The XJ650 (XJ1600) is the fleet's flagship heavy rig, rated at a 1470kN maximum load on a 4×5 traveling gear reeved with Φ29mm, 1 1/8″ drill line over eight lines.
Workover Rigs

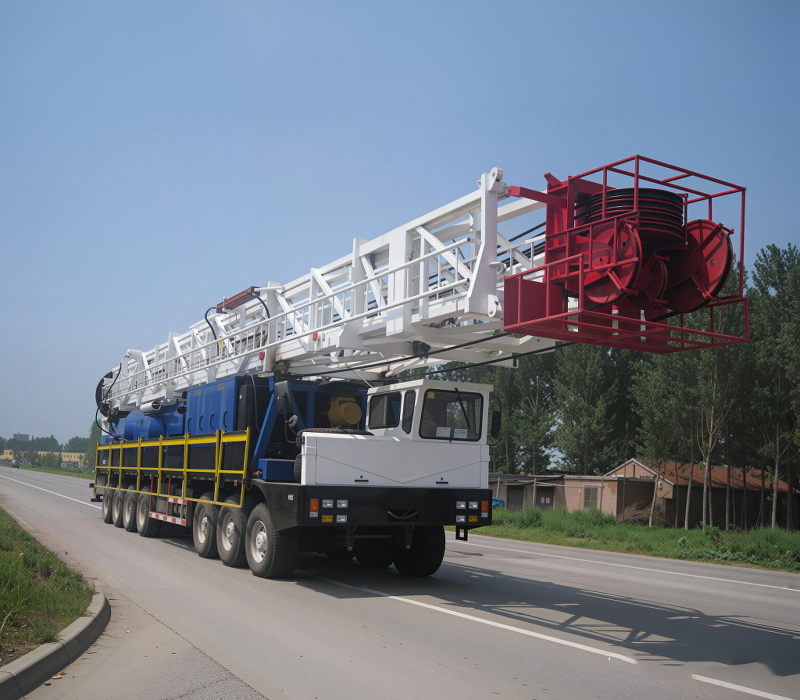

750HP Workover Rig
The XJ750 is the first rig in the fleet to split its power: twin Caterpillar C15 engines, each behind its own Allison M5620AR transmission, feed a single drawworks rated for a 280kN fast-line pull and 450rpm.
Workover Rigs

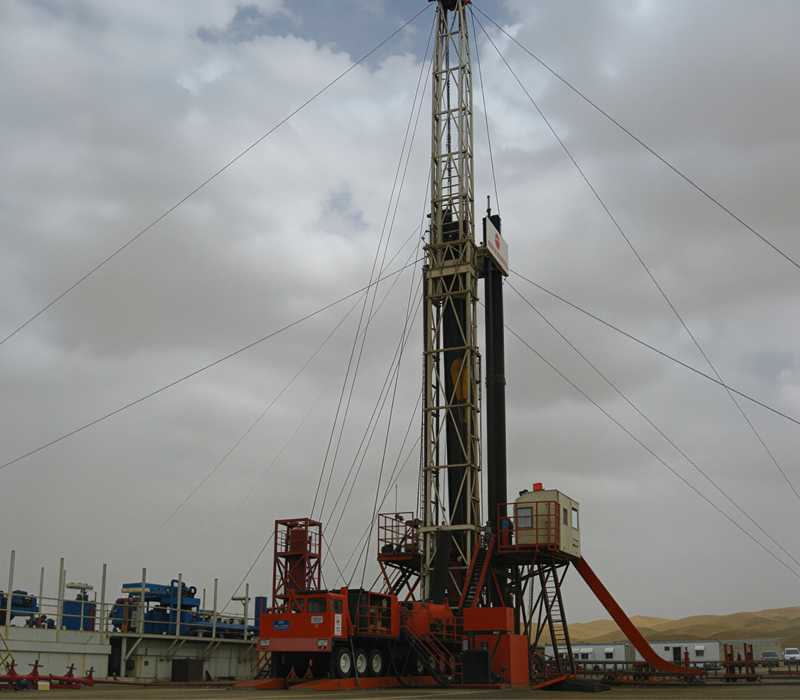

850HP Workover Rig
The XJ850 is the heaviest workover carrier the fleet builds, rated at a 2250kN hook on a 5×6 purchase strung with Φ32mm wire rope under a 39m lattice mast.
Assembly Parts

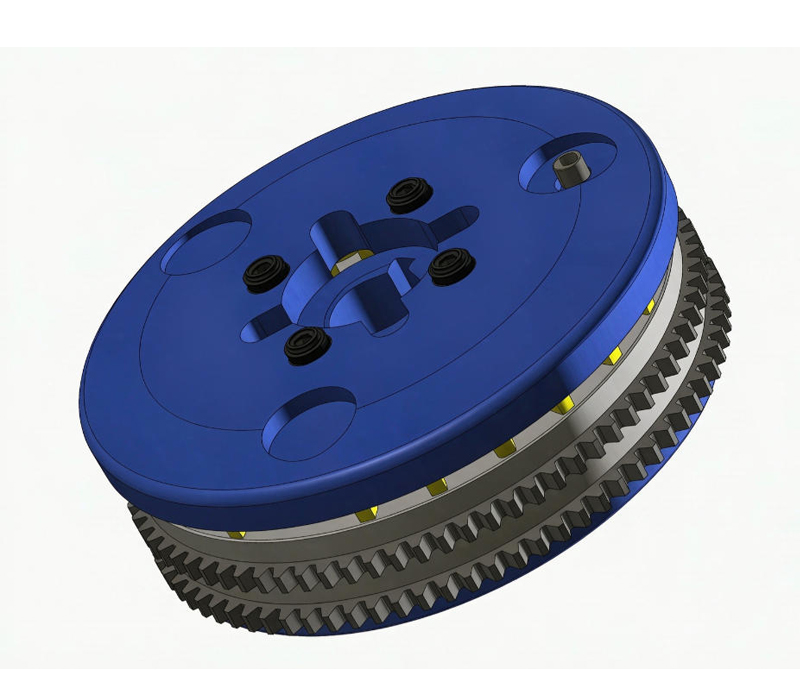

Series of Clutch
Spanning static torque from 8.1 kN.m on the ATD-214H to 110.8 kN.m on the ATD-330H, the ATD air-tube and push-disc clutch is the dry friction element that connects and disconnects the rig drawworks, mud pump and workover drivetrain.
Assembly Parts

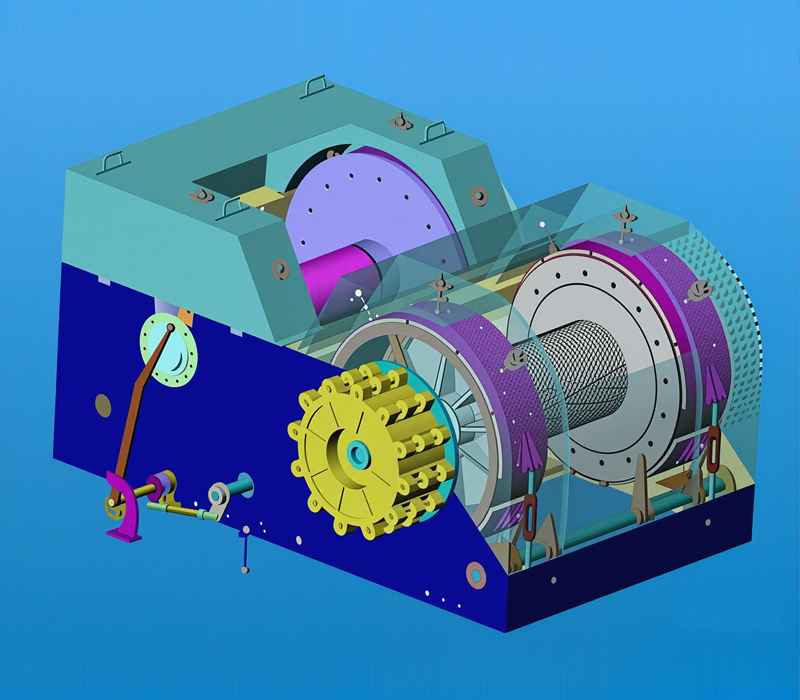

Series of Drawworks
The JC series drawworks span input power from 150 kW on the JC08 to 600 kW on the JC28/11, with maximum fast-line pull on the second drum layer from 80 kN to 280 kN.
Assembly Parts

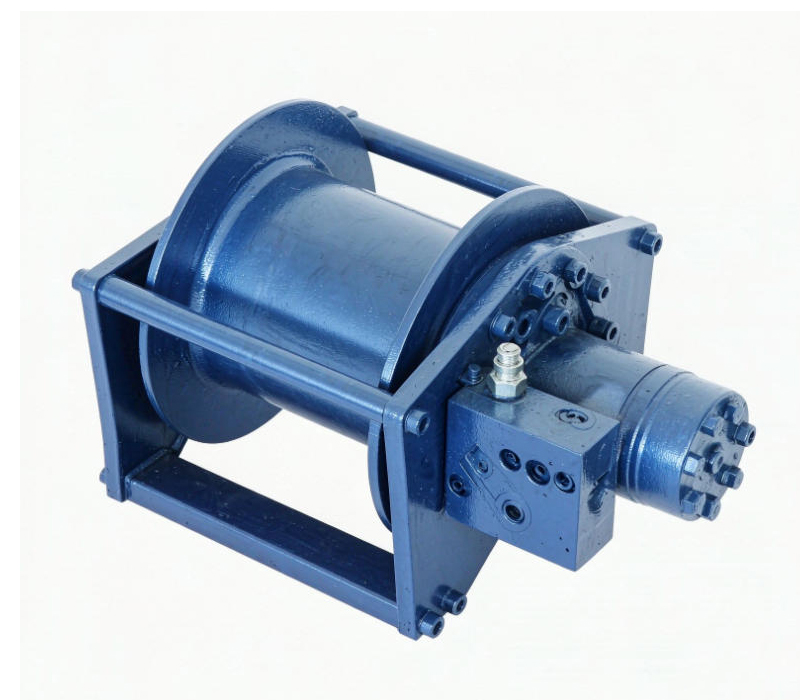

Series of Hydraulic Winch
The YC3 and YC5 hydraulic winches cover 3-tonne and 5-tonne line pulls, driven hydraulically at 14 MPa on the YC3 and 16 MPa on the YC5.
Assembly Parts

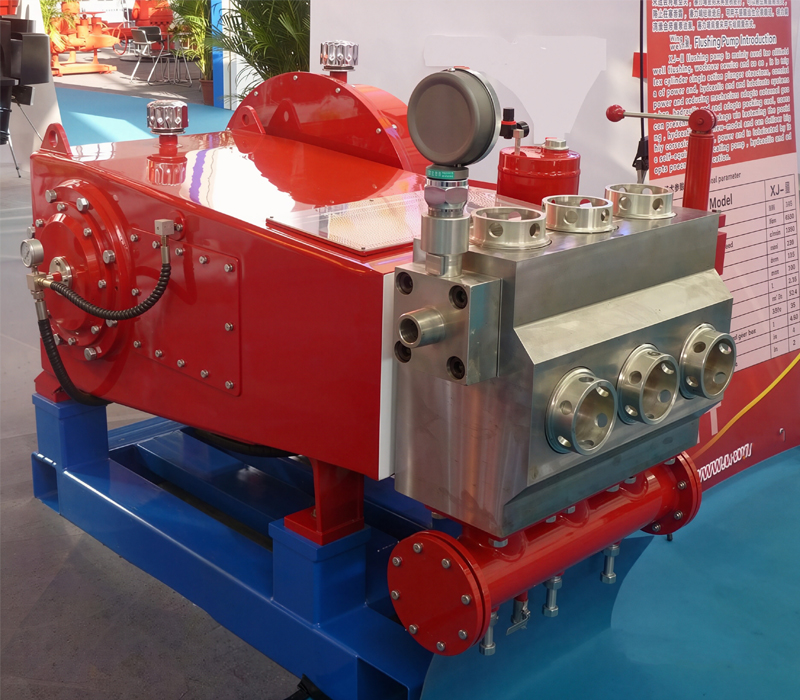

Series of plunger pump
The 3ZB triplex plunger pump spans input power from 145 kW on the 3ZB-145 to 300 kW on the 3ZB-300, running at 280 SPM on the smaller two and 360 SPM on the 300.
Assembly Parts

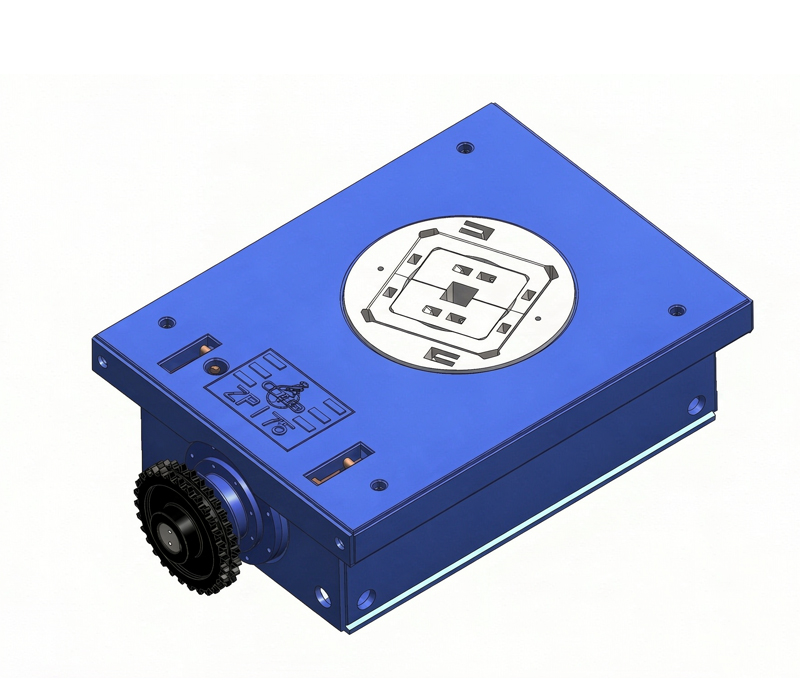

Series of Rotary Table
The ZP rotary table series spans through-hole diameters from 444.5 mm on the ZP175 and ZP175-1 to 520.7 mm on the ZP205, 698.5 mm on the ZP275 and 952.5 mm on the ZP375.
Assembly Parts

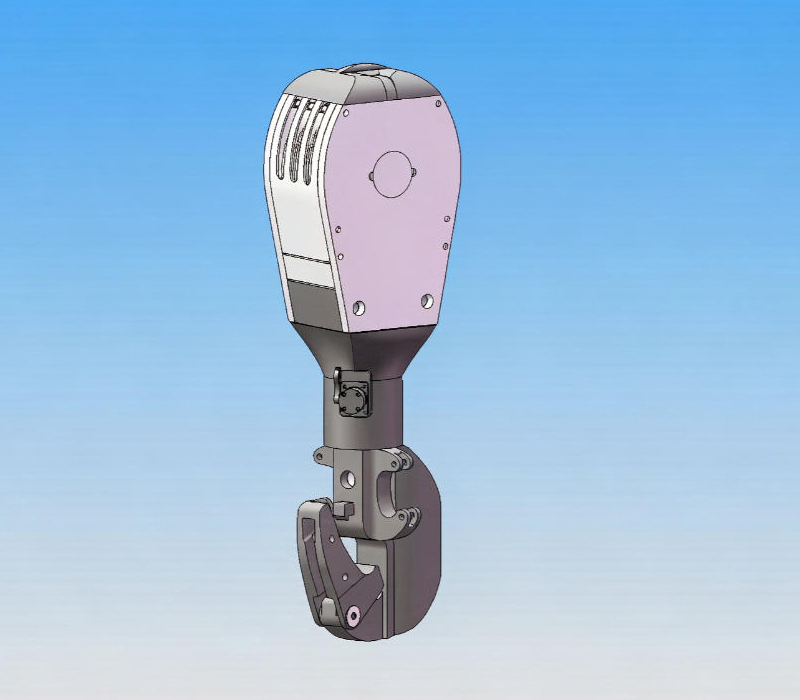

Series of Travelling Hook
The YG travelling-block-and-hook series runs from the YG30 at 300 kN rated load to the YG270 at 2700 kN, with pulley sets of three to five sheaves strung on 22, 26, 29 or 32 mm wireline depending on model.
Assembly Parts

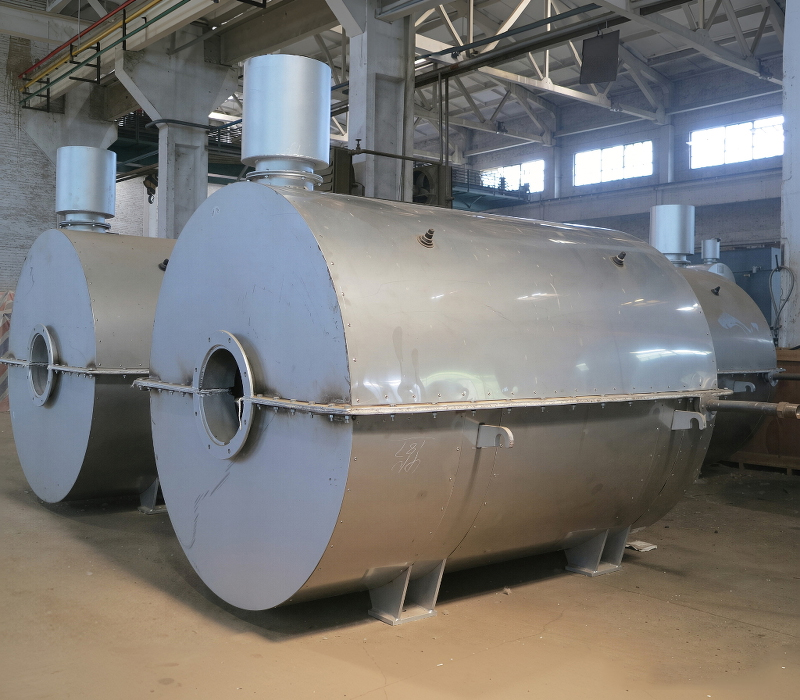

Series of Truck Mounted Special Boiler
The truck-mounted special boiler is a horizontal direct-fired forced-circulation water-tube unit rated at 1000 kW, 700 kW or 350 kW heat output.
Assembly Parts

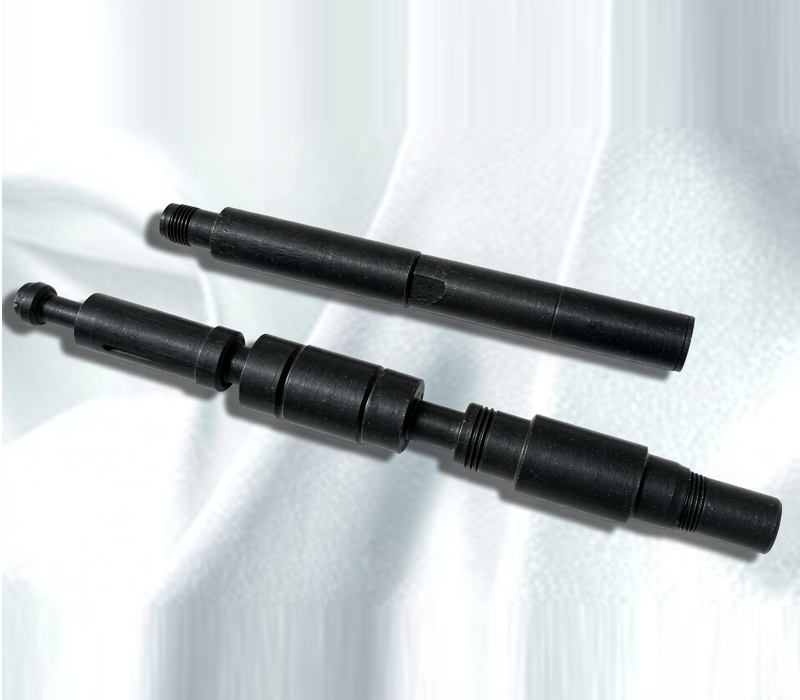

Swabbing Tool
The YCZ swabbing tool series covers integral and semi-sectional builds at 5 1/2 in and 2 1/2 in sizes, with a maximum load-bearing capacity of 80 kN on the YCZ01 and YCZ02 and 50 kN on the smaller YCZ03.
Assembly Parts

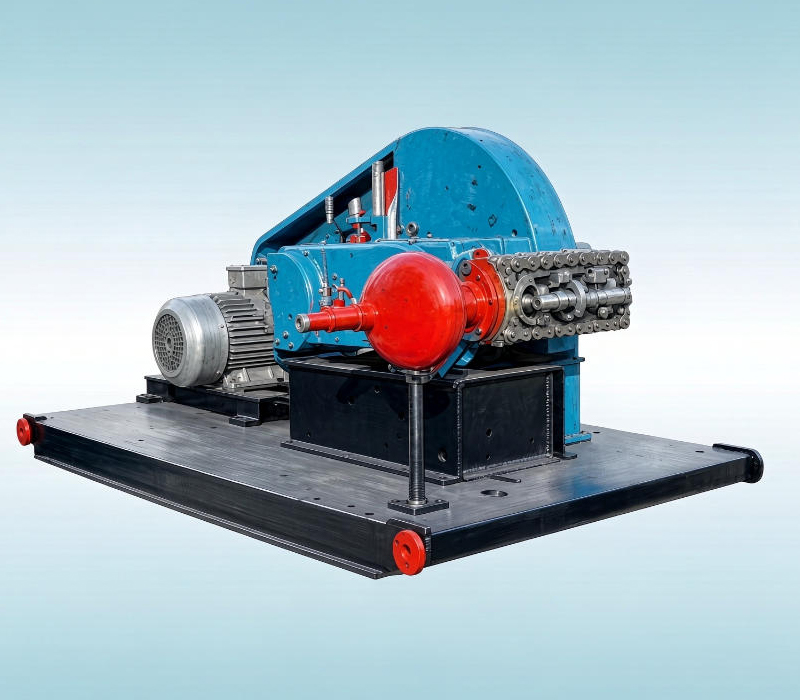

Water Injection Pump
The ZJ water-injection pump series delivers outlet pressures from 13 MPa to 68 MPa with theoretical displacement between 4 and 36 m3/h, driven by motors from 55 to 185 kW.
